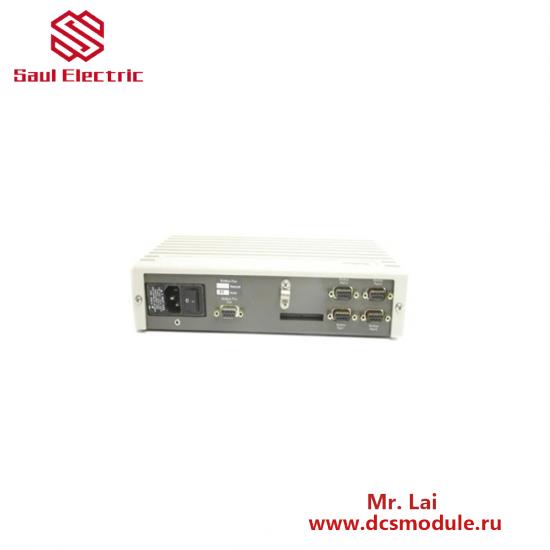

Schneider Modicon NW-BM85-000 Modbus Plus Bridge/Mux

Description

Type:Modbus Plus Bridge Mux

Manufacturer:Schneider Electric

Model Number:NW-BM85-000

Operating Temperature Range:-20°C to +50°C

Power Supply Voltage:12V DC to 24V DC

Communication Protocol:Modbus Plus

Data Transfer Rate:10 kbps to 1 Mbps

Number of Channels:16 Channels

Input Output Type:Digital

Connector Type:RS-485

Environmental Protection:IP20

Dimensions (WxHxD):142mm x 100mm x 110mm

Weight:0.5kg

    The Schneider Modicon NW-BM85-000 Modbus Plus Bridge/Mux is a high-performance network module designed for seamless integration within industrial control systems. It serves as a crucial link between the Modicon Quantum platform and Modbus Plus networks, facilitating robust data exchange.

    With its eight-port configuration, this module supports extensive connectivity, allowing for the efficient synchronization of operations across multiple devices. Its compatibility with Modbus Plus ensures compatibility and reliability in a wide range of industrial environments.

    Featuring an operating temperature range from -20°C to 60°C, it is designed for durability in challenging conditions. Additionally, its storage temperature range (-40°C to 70°C) makes it suitable for both operational and transportation scenarios.

    Equipped with RJ45 connectors and a transmission rate of 10/100 Mbit/s over double shielded twisted pairs, the NW-BM85-000 guarantees high-speed, secure data transfer, critical for maintaining system efficiency and performance.

    This product’s modular design allows for easy installation and integration into existing systems without disrupting ongoing operations, making it a versatile solution for enhancing connectivity and efficiency in industrial automation.
