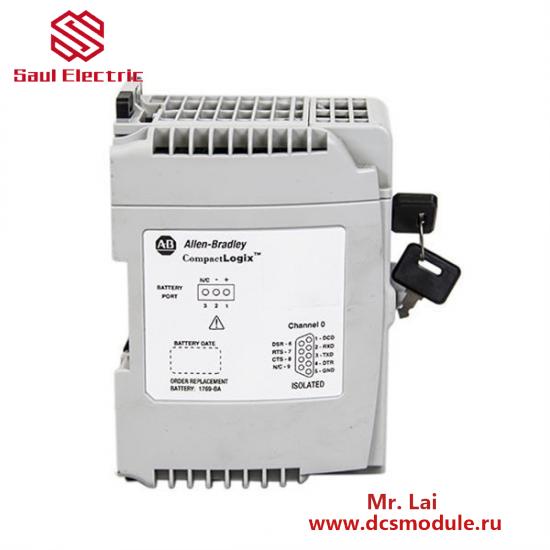

Rockwell Automation 1769-L32E/A CompactLogix Communication Modules

Description

Series:CompactLogix

Model Type:Communication Modules

Module Type:Processor Module

Number of Communication Ports:1 RS232; 1 Ethernet

Programming Cable:1747-CP3 / 1756-CP3

Modules Supported:16 I/O Modules

Mounting Options:DIN Rail; Panel Mounting

Dimensions:Width: 4.65 inches, Height: 2.76 inches, Depth: 3.43 inches

Weight:1.39 pounds

Nominal Input Voltage:24VDC

Input Voltage Range:19.2-31.2VDC

Power Consumption:100 VA @ 24V DC

Fuse Type:Wickmann 19193-6.3A Littelfuse 021706.3MXP

    The Allen-Bradley 1769-L32E/A modules are meticulously engineered to provide robust and reliable communication networks within industrial environments. These modules are fully compatible with RSLogix 5000 or Studio 5000 Logix Designer software for easy programming and configuration.

    With support for up to three 1769 I/O modules, these compact yet powerful units offer versatile connectivity options essential for modern industrial automation systems. They seamlessly integrate with other Allen-Bradley PLC components to form a cohesive and efficient control system.

    Built with high-quality materials, these modules ensure durability and longevity, capable of withstanding harsh industrial conditions. The use of copper at 90 degrees Celsius ensures stable performance even under extreme temperatures.

    For seamless installation, the Allen-Bradley 1769-L32E/A modules can be mounted on either DIN rail or panels, offering flexibility in installation and maintenance. The single-slot compatibility with 1769 backplane allows for easy integration into existing control systems.

    These communication modules are designed with user memory, providing a platform for data storage and transfer between the processor and the module. This feature enhances operational efficiency and simplifies data management in complex industrial settings.
