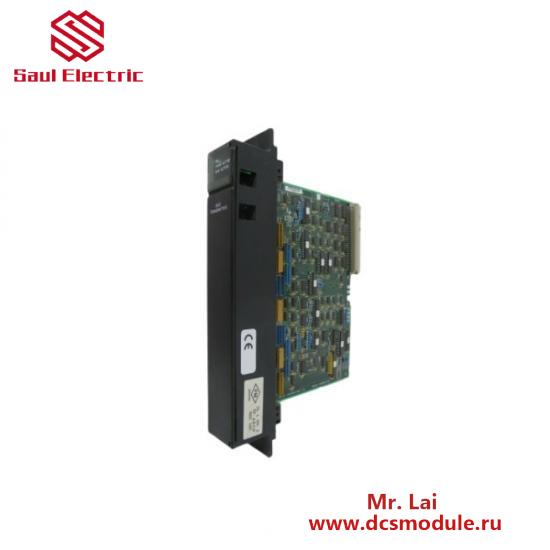

General Electric IC697BEM713GD – Industrial Bus Transmitter Expansion Board

Description

Model:IC697BEM713GD

Brand:General Electric

Series:Bus Expansion Module

Dimensions (WxHxD):12.2 x 8.2 x 6 cm

Weight:0.38 kg

Operating Voltage:DC 24 V

Communication Interface:RS-485

Number of Channels:16 Analog Inputs

Analog Input Type:Voltage or Current

Input Range:-20 to +60 VDC / 4 to 20 mA

Data Transfer Rate:9600 bps

Relay Output:2 NO/NC Relays

Relay Rating:5 A @ 250 VAC

Environmental Conditions:Operating Temp: -5 to +60°C, Storage Temp: -20 to +80°C

Certifications:UL, CE

    The GE IC697BEM713GD Bus Transmitter is an advanced expansion board specifically designed for use in the ControlLogix family of programmable logic controllers (PLCs). It provides a reliable interface for real-time data exchange between various industrial control devices.

    With its compact design and robust build quality, this board is ideal for applications requiring high-speed, efficient communication over long distances. Its compatibility with multiple bus types ensures flexibility in system architecture and integration.

    Featuring support for DeviceNet and RS-485 protocols, the IC697BEM713GD is compatible with a wide range of field devices, enabling seamless communication within complex industrial networks. The device operates at a data rate of 9600 bits per second, ensuring quick and accurate data transfer.

    This expansion board is fabricated from high-quality materials, ensuring durability and longevity in harsh industrial environments. It is designed to withstand the rigors of continuous operation without compromising performance or reliability.

    Installation is straightforward, with clear instructions provided in the accompanying documentation. The board can be easily integrated into existing ControlLogix systems, enhancing their functionality and capability to manage and control industrial processes efficiently.
