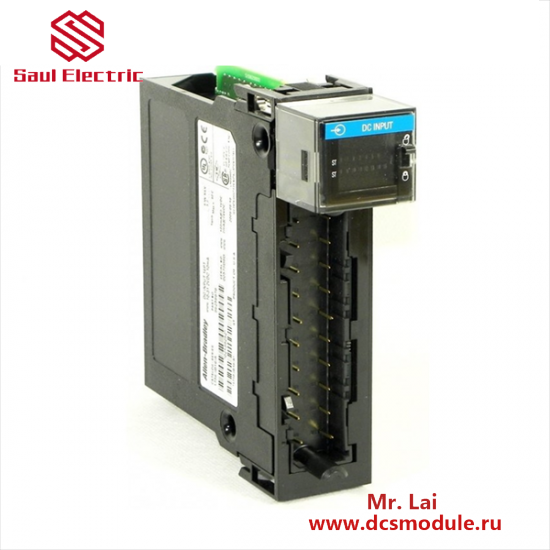

Allen Bradley 1756-IB16 Discrete Input Module: Superior Control for Industrial Automation

Description

Model Type:Discrete Input Module

Manufacturer:Allen-Bradley

Model Number:1756-IB16

Input Type:Digital

No. of Inputs:16

Communication Cable:16-point

Voltage Category:24V DC

Operating Voltage Range:20.4…26.4V DC

Current per Point:Up to 0.5A @ 60°C (140°F), 1.0A @ 30°C (86°F)

Power:24 Volts DC

Bus Current Draw, Max:200mA

Mounting:DIN Rail or Panel Mount

Temperature Rating:0…60°C (32…140°F)

Isolation:30V Continuous

Environmental Conditions:5…95% Non-Condensing Relative Humidity

Vibration:2G

Shock:30G

Connection:Shielded or Unshielded Twisted Pair Cables

Enclosure:Open Type

Communication Speed:10/100 Mbps

Communication Protocol:Ethernet/IP Bridge

    The AB 1756-IB16 Input Module is a critical component for any ControlLogix system, designed to enhance system reliability and efficiency. With its robust current sinking capability, it ensures stable operation under varying environmental conditions. This module supports up to 16 digital input points, each capable of detecting and reporting changes in state with precision.

    Featuring a compact yet durable design, the 1756-IB16 is engineered to withstand the demands of industrial environments, offering a wide operating temperature range from -20°C to +55°C and an extended humidity tolerance of 5% to 95% without condensation. This ensures continuous performance even in challenging conditions.

    One of the key features of the 1756-IB16 is its integrated communication status display, which allows users to monitor the health and connectivity of the input channels at a glance. This feature simplifies troubleshooting and maintenance, contributing to a more efficient workflow.

    In terms of power consumption, the 1756-IB16 is designed to be energy-efficient, typically consuming less than 100mW at full load. This not only reduces operational costs but also contributes to a lower environmental impact.

    For applications requiring precise control and monitoring, the AB 1756-IB16 Input Module is an ideal choice. Its combination of high reliability, versatile functionality, and user-friendly features makes it a top pick among professionals in the field of industrial automation.
