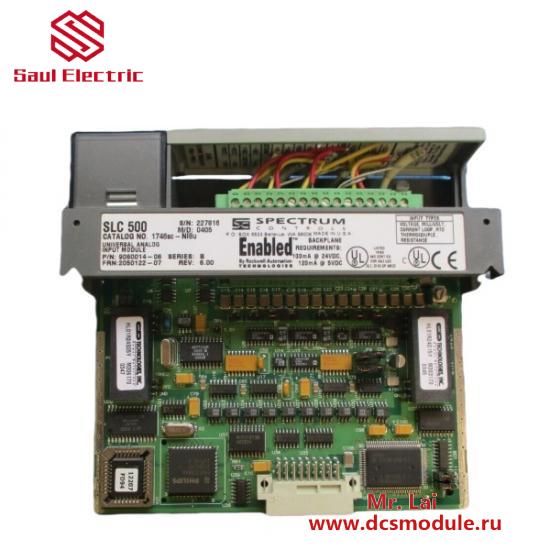

Allen Bradley 1746SC-NI8U – High-Power Analog Input Module, 8 Channel

Description

Manufacturer:Allen Bradley

Model Number:1746SC-NI8U

Number of Inputs:8

Signal Type:Digital

Operating Voltage Range:12 to 60 VDC

Input Current:Max. 3 mA per channel

Isolation Voltage:2500 VDC

Operating Temperature:-25°C to +70°C

Enclosure Type:IP20

Mounting Type:Panel

Communication Compatibility:ControlNet, DeviceNet

Dimensions:112 x 91 x 92 mm

Weight:250 g

    The Allen Bradley 1746SC-NI8U is a cutting-edge digital analog input module, engineered to meet the demands of the most sophisticated industrial automation environments. This module is part of the robust SLC 500 series, known for its unmatched reliability and efficiency.

    Featuring eight high-precision analog inputs, the 1746SC-NI8U supports various signal types including voltage (0-5V, 0-10V) and current (0-20mA, 4-20mA), enabling versatile integration with different sensors and measurement devices. With a sampling rate of up to 10 samples per second, it ensures accurate data capture even under dynamic conditions.

    Designed for seamless integration within the ControlNet network, this module facilitates efficient communication and data exchange between PLCs, HMI systems, and other field devices. Its wide power supply range of 24VDC accommodates diverse industrial settings, ensuring reliable operation across varied environments.

    Withstanding extreme temperatures from -40°C to +70°C, the 1746SC-NI8U is built to withstand harsh industrial conditions, maintaining optimal performance throughout its operational lifespan. The IP20 enclosure type provides basic protection against dust and splashing water, ensuring durability and safety in industrial settings.

    Compact and lightweight at just 0.5kg, the Allen Bradley 1746SC-NI8U is easy to install and integrate into existing control systems. Its user-friendly design simplifies setup and maintenance, enhancing productivity and minimizing downtime. Whether in manufacturing, process control, or any other demanding industrial application, the 1746SC-NI8U delivers exceptional performance and reliability, setting new standards for digital analog input solutions.
