Description
AC Input Voltage:100-240V AC
AC Input Frequency:47-63 Hz
Main AC Input Current:28 A Continuous
Output Power:1.5 kW
Bus Overvoltage:452V DC
Shunt On:420V DC
Integral Indexing Capability:Yes
Voltage Supply:230-480V rms, 3-Phase
Frequency:47-63 Hz
Continuous Output Current:7A
Intermittent Output Current:14 A
Control Specifications:Commutation with 3-Phase Sinusoidal, SVM, Digital PI Current Regulator, Digital PID Velocity Regulator, Position Regulator
Communication Protocol:SERCOS
Weight:22.96 pounds
Auxiliary Power Supply:Yes
Internal Shunt Resistance:40 Ohms

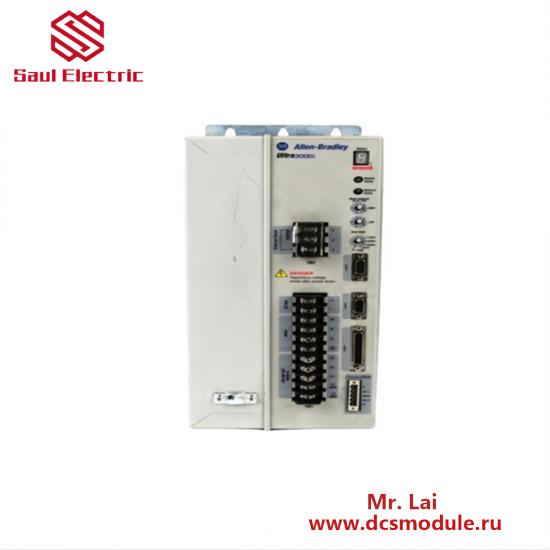

The Allen-Bradley 2098-DSD-HV150X-DN Servo Drive is a powerhouse in the realm of industrial automation, meticulously designed for seamless integration into complex machinery systems.
With an expansive voltage range of 230-480V rms, supporting 3-phase inputs, this servo drive ensures unparalleled adaptability across various industrial applications, from manufacturing lines to robotics.
Equipped with advanced commutation techniques like 3-Phase Sinusoidal and Space Vector Modulation (SVM), coupled with Digital PI and PID regulators for velocity and position control, this drive delivers exceptional precision and responsiveness.
Featuring a robust control suite that includes Digital PI Current Regulator and Digital PID Velocity & Position Regulators, it ensures consistent and accurate motion control, crucial for high-speed and high-precision tasks.
The Allen-Bradley 2098-DSD-HV150X-DN is engineered to withstand rigorous operational demands, boasting a maximum current capacity of 14A, making it suitable for applications requiring high torque and efficiency.
